Model : CS-X5S-R100-8W

IPC Access Capability

Wireless/Wired IPC Access Capability : 3K *4/3K *8

Wired IPC Access Capability : 3K *4 (X5S-4W) / 3K *8 (X5S-8W)

Network Parameters

Antenna Number : 2

Max Wireless Range : 100m

Radio Frequency : 2.4G

Ethernet Port : One 10/100M adaptable Ethernet interface

Required Access Bandwidth : 50 Mbps/100 Mbps

Video Output

VGA : 1 channel (identical to HDMI output) resolution up to 1920*1080/60Hz

HDMI : 1 channel resolution up to 2592*1944/30HZ

Audio/Video Codec

Recording Resolution : 3K / 2K+ / 2K / 1080p / UXGA / 720p / VGA / 4CIF / 2CIF / CIF / QCIF

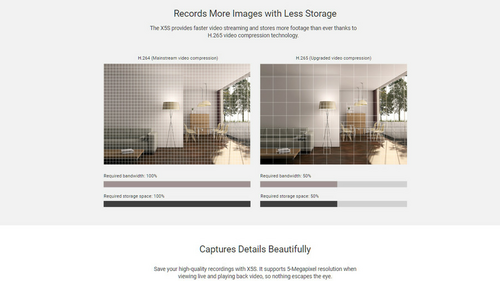

Video Encoding : H.265, H.264

Decode Playback : Supports 4*3K/Supports 8*3K

Video Recording Management

Video Recording Mode : Manual video recording; Motion detection recording; Scheduled video recording; Event triggered recording

Backup Mode : Hard disk backup, Internet application backup

Playback Mode : Instant playback ; Normal playback ; Event playback ; Tag playback; Log event playback

Open Protocol

Open Protocol Support : HIKVISION, ONVIF (V.2.5)

HDD

Interface Type : One built-in SATA port

Capability : Supports 1TB to 8TB 3.5-inch HDD

External Interface

Audio Input/ Output : Not support

Hardware Reset : Supports

USB2.0 Interface : 2

Dimensions

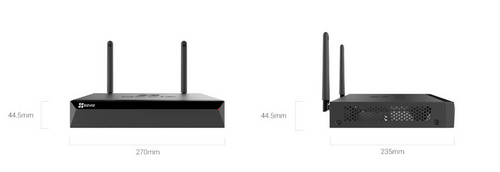

Product Dimensions : 235 × 270 × 44.5 mm (9.25 × 10.6 × 1.75 inch)

Packaging Dimensions :387 × 362 × 75 mm (15.2 × 14.3 × 3 inch)

Power Supply

DC :12V/1.5A

Consumption

Standby status : [?]8W

Weight

Net Weight :932 g

In the box :

- X5S NVR × 1

- Power Adapter × 1

- Mouse × 1

- Screw Kit × 1

- Regulatory Information × 2

- Quick Start Guide × 1
