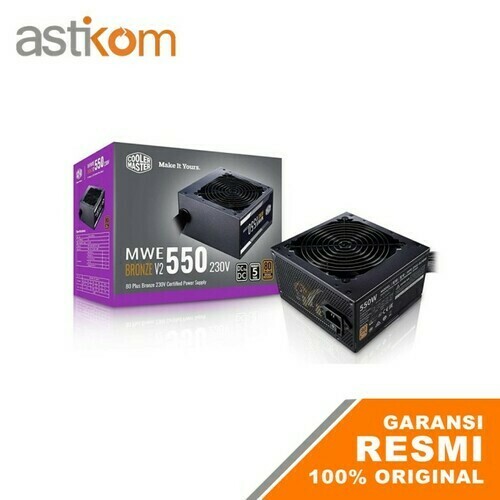

MWE 550 BRONZE - V2
80 PLUS BRONZE CERTIFIED POWER SUPPLY
DC-to-DC Technology
120mm HDB Fan
80 PLUS Bronze Efficiency
Flat, Black Cables
5 Year Warranty
MODEL : MPE-5501-ACABW-B
ATX VERSION : ATX 12V V2.52
PFC : Active PFC
INPUT VOLTAGE : 200-240Vac
INPUT CURRENT : 10-5A
INPUT FREQUENCY : 50-60Hz
DIMENSIONS (L X W X H) : 140 x 150 x 86 mm
FAN SIZE : 120mm
FAN BEARING : HDB
FAN SPEED : 1500 RPM
NOISE LEVEL @ 20% : 13.8 dBA
NOISE LEVEL @ 50% : 18.4 dBA
NOISE LEVEL @ 100% : 31.2 dBA
EFFICIENCY p 88% Typically
80 PLUS RATING : 80 PLUS Bronze EU 230V
ERP 2014 LOT 3 : Yes
POWER GOOD SIGNAL : 100-500ms
HOLD UP TIME : >18ms at 100% Full Load@230Vac
MTBF : >100,000 Hours
PROTECTIONS : OVP, OPP, SCP, UVP, OTP
REGULATORY : CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB
ATX 24-PIN CONNECTORS : 1
EPS 4+4 PIN CONNECTORS : 1
SATA CONNECTORS : 6
PERIPHERAL 4-PIN CONNECTORS : 3
PCI-E 6+2 PIN CONNECTORS : 2
SERIE : MWE Bronze Series
80 PLUS : Bronze
MODULAR : Non Modular
WATTAGE : 500 to 750W
