SPECIFICATIONS

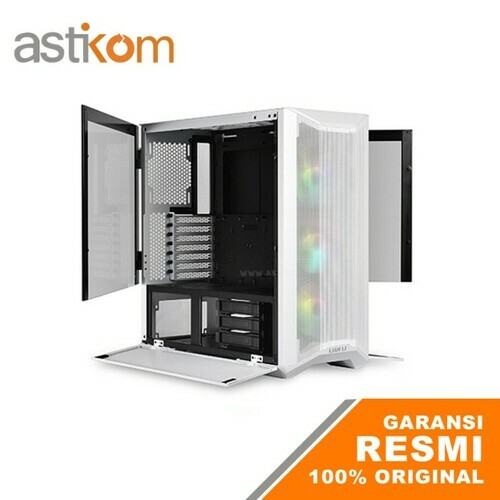

Model LANCOOL II MESH RGB With Type C Port
Dimensions (D) 478mm x (W) 229mm x (H) 494mm
Motherboard E-ATX(width: under 280mm)/ATX/M-ATX/ITX
PSU 210mm
Materials Steel 4.0mm tempered glass (both sides)
Fan Support
Front (multi-way fan/radiator bracket): 3 x 120mm or 2 x 140mm
Top: 2 x 120/140mm
Rear: 1 x 120mm Above PSU Chamber: 2 x 120mm
Radiator
Front (multi-way fan/radiator bracket): 1 x 360/280/240mm
Top: 1 x 240mm (aligned to the left)
VGA Length 384mm
CPU Clearance 176mm
Drive
Behind MB Tray: 2 x 2.5? SSD
Behind the right flip panel: 2 x 2.5”
SSD Hard Drive Cage: 3 x 3.5? HDD/2.5?
SSD Above PSU Chamber: 2 x 2.5? SSD
Slot 7
I/O Ports
C button for color control M button for lighting mode control
1 x TRRS AUDIO
2 x USB 3.0
1 x USB 3.1 TYPEC (Optional)
Dust Filters 1 x Top (magnetic), 1 x Bottom (tray)
Incl Fans 3 x included 120mm 3-PIN 1300 RPM ARGB fans Rated Speed:1300RPM ±10 % Air Flow:49.14CFM Noise:25.0dB(A)
