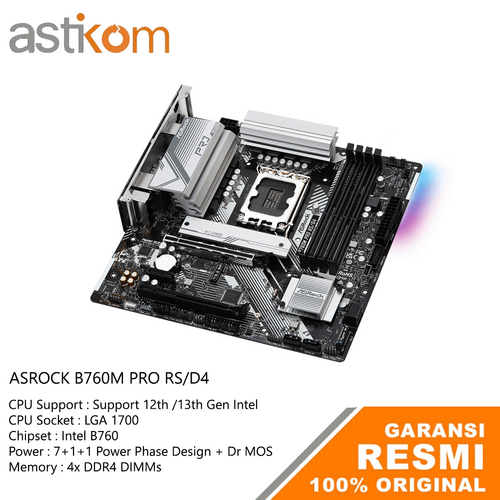

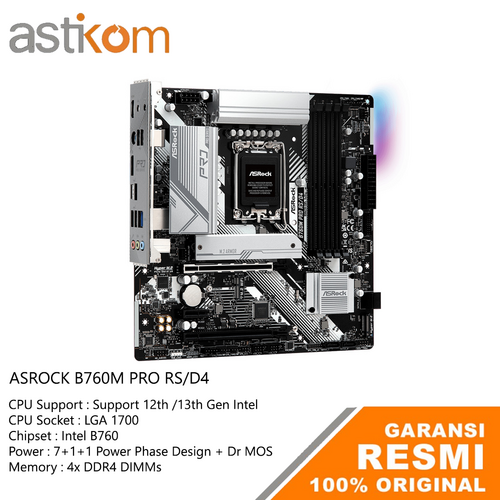

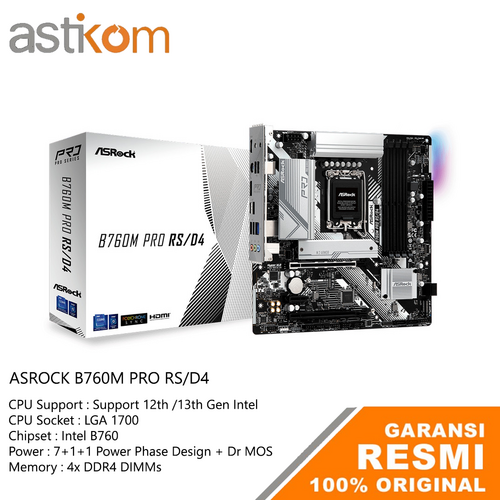

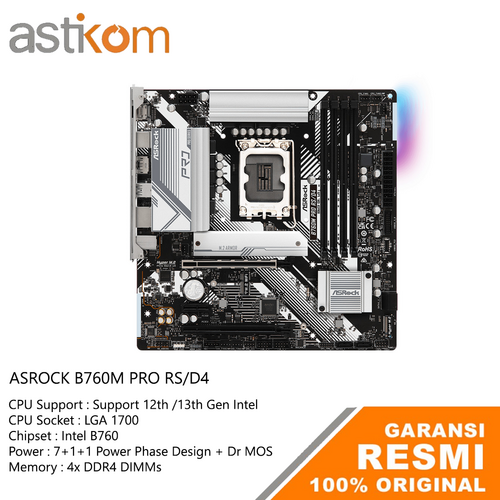

ASRock B760M PRO RS/D4 LGA1700
Spesifikasi :
CPU Support : Support 12th /13th Gen Intel Core Processors
CPU Socket : LGA 1700
Chipset : Intel B760
Power : 7+1+1 Power Phase Design + Dr MOS
Memory : 4x DDR4 DIMMs
Expansion Slots :
2 PCIe 4.0x16
1PCIe 4.0x1
1M.2 Key-E for Wifi
Graphics : Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated
Graphics Output :
1 x HDMI
1 x DisplayPort
Storage :
4 SATA 3
1 Hyper M.2 (PCIe Gen 4x4)
USB Port :
- 2 x USB 3.2 Gen1 Type-C (2 Rear, 2 Front)
- 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
- 6 x USB 2.0 (2 Rear, 4 Front)
Audio :
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
LAN : Dragon 2.5 Gigabit LAN
Form Factor : Micro ATX
Warranty 3 years by Asrock
