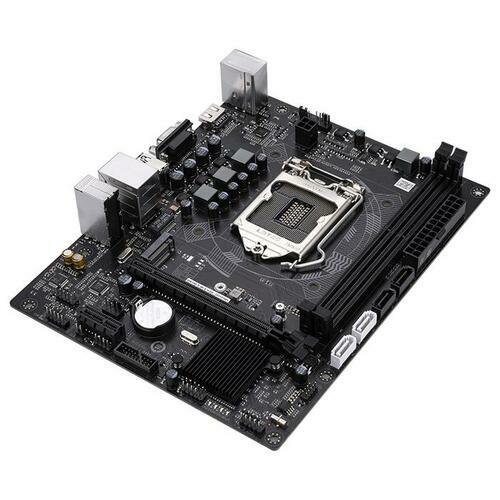

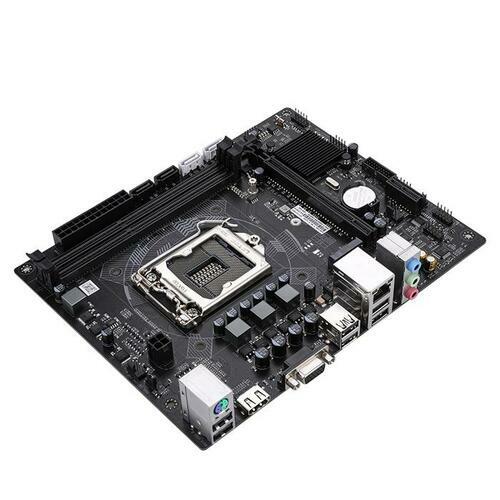

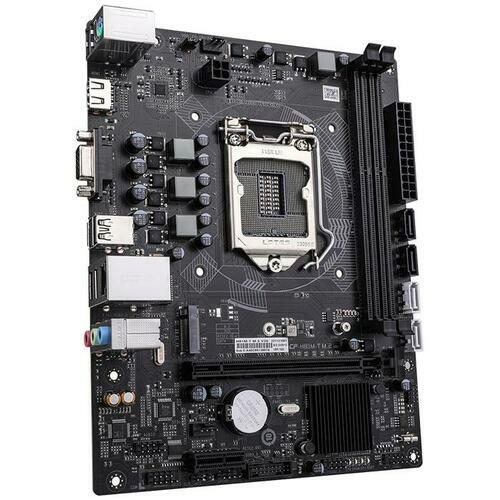

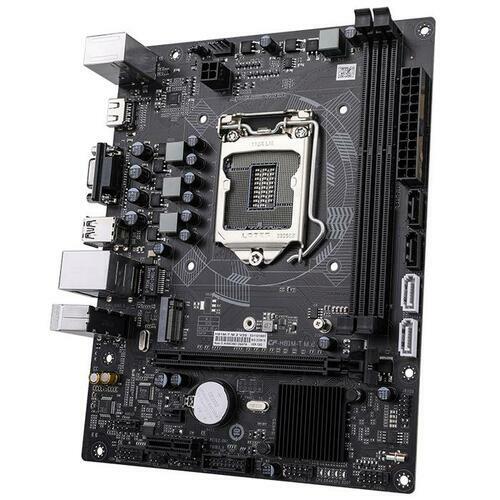

Product Model : H81M-T M.2 V20

Fully upgraded : PCB atomization technology

Product Series : Other Series

Chipset : Intel H81

CPU Support: Supports 4th Generation Intel Core, Pentium, and Celeron processors compatible with the motherboard's LGA 1150 socket.

Memory Support: Provides two DDR3 memory slots, supporting up to 16 GB of memory (a single slot supports up to 8 GB).

-Supports DDR3 1666/1333/1066MHz memory.

-Supports dual-channel memory technology.

Storage Interface: Supports one M.2 slot and four SATA hard drive interfaces.

-M.2_1 slot: supports 2242/2280 M.2 SSDs (PCIe 2.0 x4, PCH lanes)

-SATA_1/SATA_2 ports: support 6Gb/s

-SATA_3/SATA_4 ports: support 3Gb/s

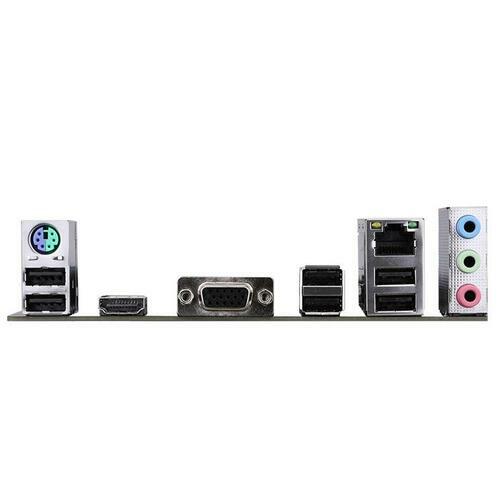

Expansion Interfaces: Rear I/O:

-6 USB 2.0 ports

-1 HDMI 1.4 port, supports up to 4K 30Hz resolution

-1 VGA port

-1 PS/2 port

-1 Gigabit Ethernet port

-3 audio jacks (audio-in/audio-out/microphone)

Onboard Device Interfaces:

-1 CPU fan header

-1 system fan header

-1 USB 2.0 header (expandable to 2 USB 2.0 Type-A ports)

-1 USB 3.2 Gen 1 header (expandable to 2 USB 3.2 Gen 1 Type-A ports)

-1 front audio header

-1 front panel header

-1 speaker header

-1 serial port header

-1 clear CMOS jumper

-1 BIOS burner header

-1 memory voltage control jumper

Expansion Slots: 1 PCIe 2.0 x16 slot, 1 PCIe 2.0 x1 slot

System BIOS : 128M UEFI, supports multiple languages

Power management: Support S3, S4, network S5 wake-up, support timed startup, call startup

Hardware : monitoring CPU fan speed controllable, system fan speed controllable, CPU temperature monitoring, system temperature monitoring, and each group voltage monitoring

Onboard network card : RTL8111H Gigabit network card

Onboard sound card : Realtek ALC897 high-fidelity decoding chip, supports 5.1 channels

Motherboard Specifications: M-ATX

170mm x 215mm
